Section E - Managing Mileage Payments (processed externally)

Modified on Fri, 22 Mar at 1:43 PM

Background

The P11D Organiser is designed to replicate the payment process that organisations perform for reimbursing business travel. As a result, the system requires the user to set up “Mileage Schemes” to reflect the respective pence per mile rate that an organisation reimburses to its employee to determine any Benefit In Kind each employee had during that tax year and report this on the P11D.

There are occasions when the number of mileage schemes being operated within an organisation runs to more than the 10 schemes accommodated by the system, which is particularly prevalent in public sector bodies.

As a result, we have designed a simplified method which is now the recommended approach for ALL ORGANISATIONS with reportable mileage payments.


Approach

This method removes the need to replicate the mileage schemes and calculations already made elsewhere, but simply state what has already been paid to that individual and the number of miles (cumulatively across all schemes) and implement a simplistic mileage scheme in the Organiser to receive this information.

There are special provisions made to deal with passenger payments and you should exclude this additional value from your standard mileage data extract. More information on Passenger Payments can be found towards the end of this document.



Data Extract from payment system

The following extracts are required from Payroll or any other payments system holding the information following the end of the tax year:

  • Person ID (e.g. Payroll Number and/or NI Number)
  • Business Miles covered and Mileage payment made for those miles (excluding passenger payments) - this can be year to date totals or at a payment/transaction level (should you choose).
  • Round Sum Allowance (“Lump Sum”) payments made (if any)
  • Passenger payments made and Total Passenger Miles (if any)



Setup a Vehicle in P11D Organiser

To accommodate the importing of the extracted mileage information, a vehicle record needs to be created as all mileage records are associated with the vehicle used to perform the journey(s). It is suggested for simplicity to enter this record with a Vehicle Registration Number of simply “Mileage”. If you have the additional need to accommodate Round Sum Allowance/Lump Sum payments, then create a second vehicle record and enter this record with a Vehicle Registration Number of “LumpSum”.

To create these, you can either import the cars by creating an import file like this.


Please refer to the relevant importing guide for Section E

or manually add them via Section E if it is a Private Car.


Importing Business Mileage

Once the Vehicle and Mileage Schemes have been set up, these can be used in extending  the data extracted from the originating payment system to prepare the mileage file ready for import.

Sample extract from payment system

NINOPAYROLLFROMTOPAYMENTANNUAL BUSINESS MILES
NA054007A
PR0014
06/04/202305/04/2024693813876
NA000002A
PR0015
06/04/202331/01/202414132826
NA000029A
PR0027
06/04/202305/04/20245501.511003


Extended with Vehicle Registration and Mileage Rate Scheme number ready for importing for a private car (use real registration when referring to a company car)

NINOPAYROLLFROMTOPAYMENTANNUAL BUSINESS MILESMILESRATER_NUMBER
NA054007A PR0014
06/04/2023
05/04/2024
6938138760Mileage
NA000002A
PR0015
06/04/202331/01/2024141328260Mileage
NA000029A
PR0027
06/04/202305/04/20245501.5110030Mileage


Importing Round Sum Allowance/Lump Sum Payments

The process for this is the same as mileage except the number of miles is set as Zero and the Vehicle used is with a Registration Number of “LumpSum”, set up previously.

NINOPAYROLLR_NUMBERFROMTOPAYMENTANNUAL BUSINESS MILESMILESRATE
NA054007A
PR0014
Lumpsum
06/04/202305/04/2024750000
NA000002A
PR0015
Lumpsum06/04/202305/04/2024750000


Passenger Payments – Consideration and Data Preparation

If you pay above HMRC rates for this particular element and if these supplements are rolled in to the mileage payments, the AMAP calculations will be incorrect, so by excluding these values and putting the passenger payments into section M (when required) to report any profit on those specific payments, we can ensure that the right Benefit In Kind is reported.

Currently, HRMC allows a supplementary element of up to 5 pence tax free for each additional passenger carried during a business journey. If the additional payment made by an employer is less than this value, you can simply ignore this element altogether. In the event that the payment is in excess of this allowance then there is a requirement to prepare a return for this.

An import file for loading into Section M may consist of the following elements:

Date Fields table




Value of benefitCASHEQVNumeric
10Compulsory
Benefit date
DATEDate8Optionaldd/mm/yyyy
Description of benefitDESCRIPTIOCharacter50Compulsory
Amount made goodMADEGOODNumeric10Optional
NI NumberNI_NUMBERCharacter10

Additional DescriptionNOTESCharacter30Optional
Payroll numberPAYROLLCharacter20


In the illustration below, the first four columns can be used as an import file - the additional columns are to illustrate the rates and miles used to determine the import values.

PAYROLLDESCRIPTIOCASHEQVMADEGOOD
Passenger Miles
Passenger Mlg RateHMRC AllowanceNo of Passengers
PR0014Passenger Payments£7.00£5.00
50£0.07£0.052
PR0015Passenger Payments£8.75£6.25
125£0.07£0.051
PR0027Passenger Payments£21.00£15.00
100£0.07£0.053


Manually Entering Business Mileage

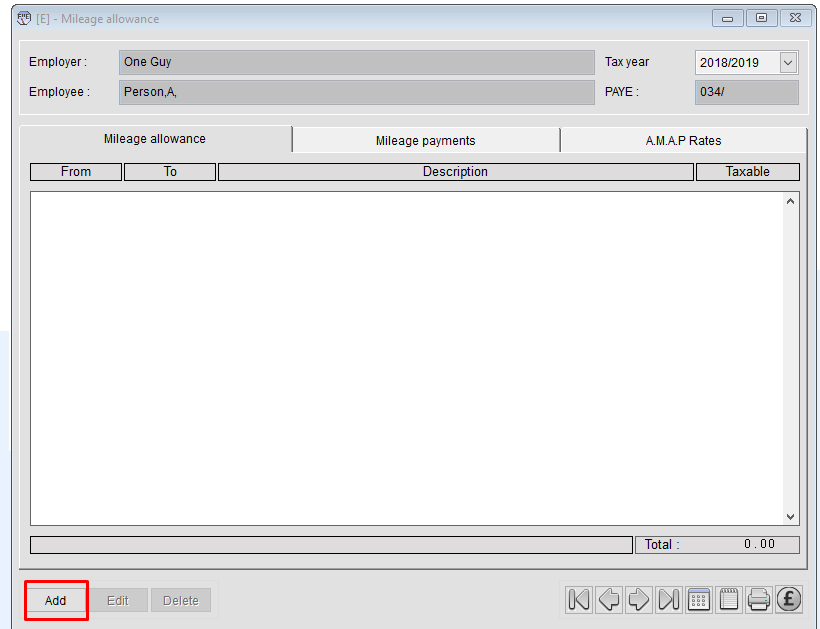

Once you have selected any person from within the company press the green add button on the right-hand side of the screen.


Make sure you are in Section E (check form title) then click Ok


Select a "Mileage allowance rate" from the Description list and fill in the boxes then click SAVE


Once you have saved this, the car will be saved and the mileage payment will be complete for that individual. Simply delete the mileage payment that will already be highlighted – this will remove the taxable entry but it will leave the car in the system to be used later.


Repeat for a car with a registration number of "LumpSum" if required.
